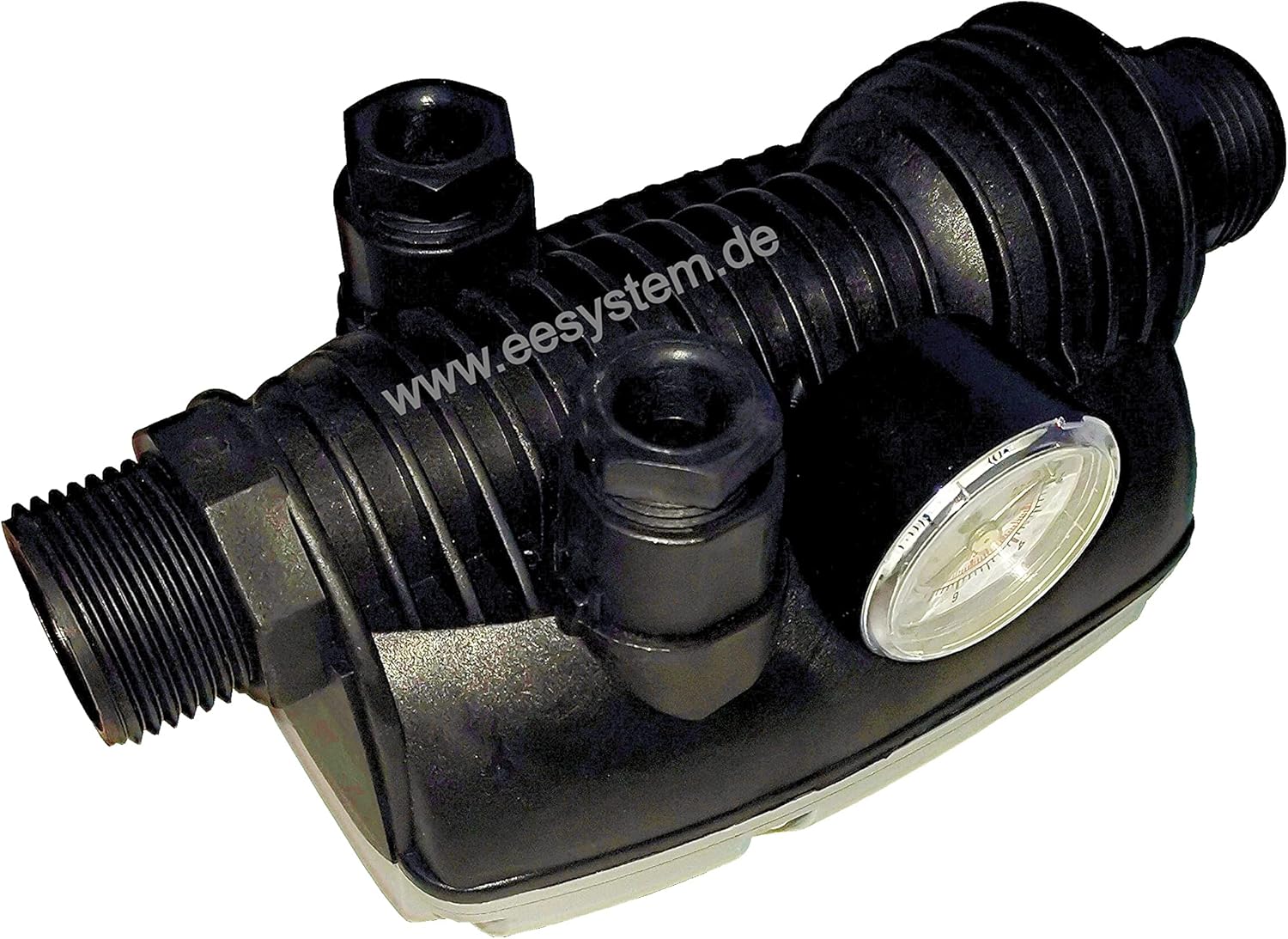

Foras SERVOPRESS S2 ELECTRONIC FLOW CONTROL PUMP CONTROL PRESSURE SWITCH MADE IN ITALY For Well Pump Domestic Water Pump Centrifugal Pump

The practical electronic flow control from Foras automatic switch for the complete replacement of the traditional water system set consisting of pressure switch and pressure vessel. With the Foras-Pentax Servopress S1, you can control the start of the electric pump after a pressure drop (open taps) and stop when the fluid flow at the maximum pressure level of the electric pumps (close the tap). PENTAX INDUSTRIES S.P.A. Headquartered in Veronelo (Italy) was founded over 25 years ago by the Pedrollo family. The company is one of the most famous and leading manufacturers of pumps worldwide and produces over 1000 different models with delivery heights up to 1000 m and capacities up to 1200 m3/h. Its products are of high quality and performance. * Quality made in Italy * Features: - Protection against dry running. - Start-up pressure can be adjusted during installation. - Installation in any position - both vertically and horizontally to the flow direction - Easily replaceable electronic circuit board - Standard hydraulic connections 1 inch G (25 mm). - No maintenance required. Technical data: - Power supply: 230V ac ± 10% 50/60Hz - Rated current: 12 A. - Starting pressure range: 1 - 3.5 bar. - Voltage: 230 V (AC). - Rated current: 12 A. - Max. Pressure: 10 bar. - Protection grade: IP65. - Weight: 0.6 kg. - Dimensions (L x W x H): 190 x 105 x 70 mm. Manufacturer: Pentax Industries S.P.A., Italy. - Max. Liquid temperature: 55 °C. - Max. Ambient temperature: 55°C Product description: SERVOPRESS S1 - is an automatic switch without compromising high European quality. The pump control consists of a hydraulic and a replaceable, electronic part.

• The SERVOPRESS S1 pump control system is manufactured by Pentax Industries S.P.A. Made in Italy, has original European quality and is not a cheap Asian counterfeit.
• The practical pressure switch SERVOPRESS S1 ensures constant water pressure when using household electric water pumps, small water networks, garden irrigation pumps and others. An automatic pressure regulator controls the water pressure and switches off the pump as soon as the set pressure is reached. If the pressure drops below the desired value, the pressure switch automatically switches the pump on again.
• This device has a special dry run protection to protect the main electric water pump. In case of lack of water (less than 2 litres min), the pump stops automatically (dry run protection is activated). The pump control consists of a hydraulic and replaceable electronic part.
• Hydraulic part: - Pressure gauge monitors the switch-on pressure and system pressure. - Shut-off valve - a valve that responds to flow changes - molded and reinforced plastic body - diaphragm and spring respond to pressure changes - Safety valve to prevent water leakage when the membrane is damaged
• Electronic part: - Impact resistant electronic control card with composite insulation. earta is easily replaceable and has IP65 protection - sealed body made of fireproof injection moulded plastic - 2 sealed sleeves for inserting electrical cables - relay with a switching capacity of more than 100,000 cycles in continuous operation with a maximum current of 12 A. - Varistor against voltage spikes
• CE certified, IP65 rating. Electronic part complies with European EMC regulations and has low electronic interference
• Package include:1pc Automatic flow sensor SERVOPRESS S1 (without cable), electrical clamps and manual.
